Home Security System

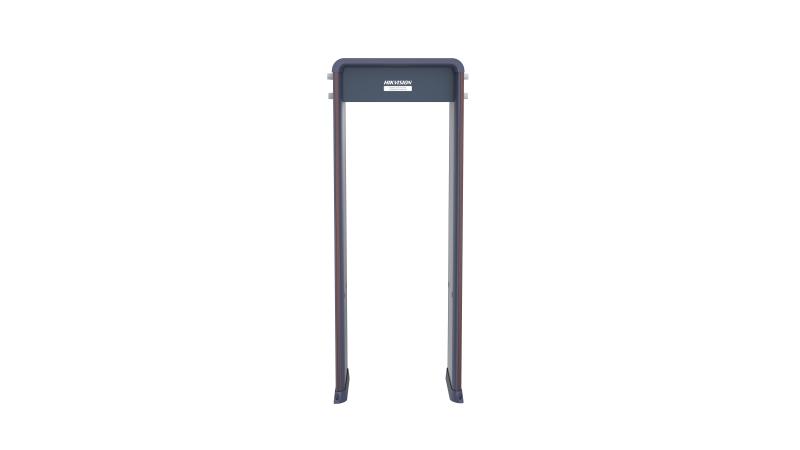

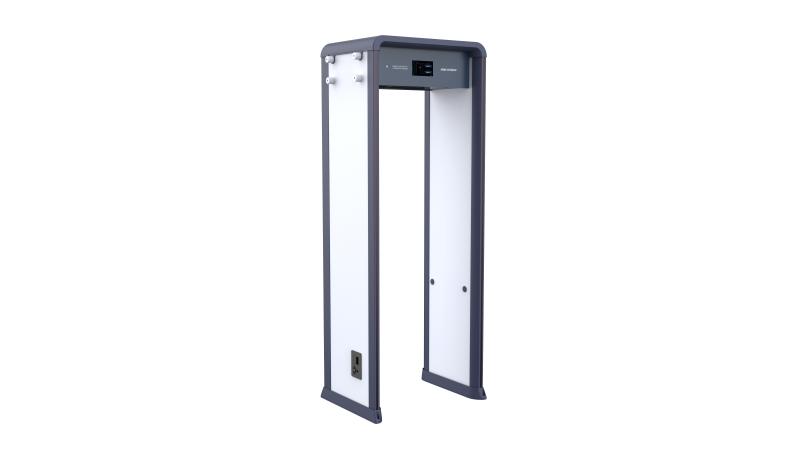

ISD-SMG533L – Walk-though Metal Detector
- Metal Detection: Detect metals as small as a paperclip, enable effective inspection of prohibited items.
- Display: A 7-inch LCD screen displays passenger flow and alarm data.
- Remote Control: Equipped with an IR remote control for remote parameter configuration.
- Multi-Zone Alarm: Supports up to 33 zones. When metals are located at different areas, the simultaneous alarms will be triggered and indicating the locations accordingly. Additionally, it can accurately detect a thrown-through metal objec
- Ultra-Low Detection Height: Can detect metals located higher than 3cm above the ground.
- Power-On Self-Diagnosis: The system performs a self-check and displays the diagnostic results upon startup.
- Modular Design: Designed with modular components, making transportation and maintenance convenient and efficie
- Modular component design: convenient transportation and maintenance.
- Network Connectivity: Operate as a standalone unit with the ability to connect to network, allowing parameter configuration through a web-based interface. Additionally, it can be integrated with HCP or other platform for the aggregation of passenger flow and alarm data.
Dimension Parameters
- Tunnel Size2005mm x727mm x 600mm (H x W x D)
- Dimension2287mm x 872mm x 665mm (H x W x D)
Specification Parameters
- Operating Humidity≤95%(No Condensation)
- Operating Temperature-20 °Cto 55°C
- Power100~240V, 50/60Hz
- Weight84Kg
Device Interface
- Network Interface1
- Alram Output2-channel alarm output port.
Display Parameters
- Screen Size7 inch
