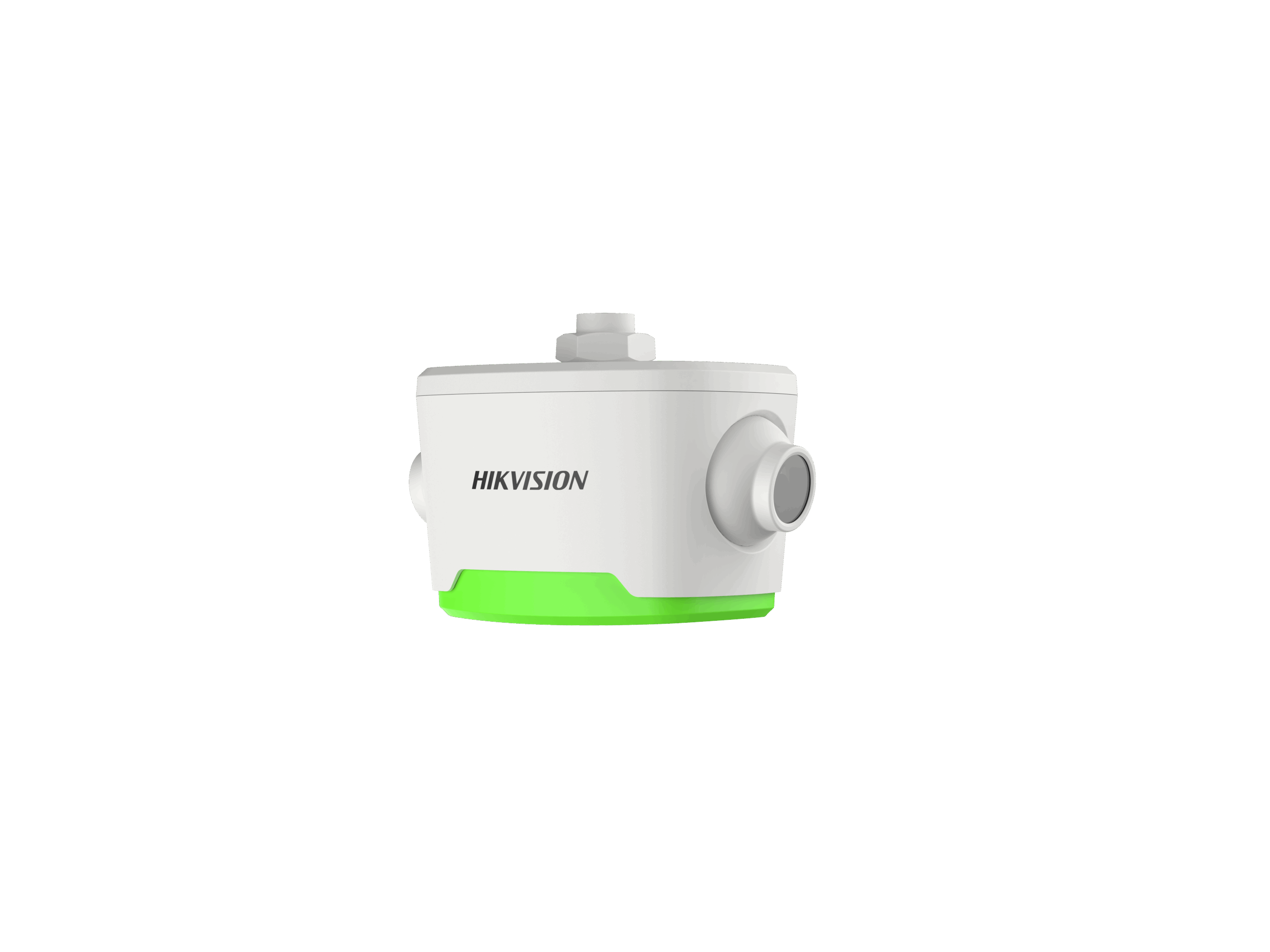

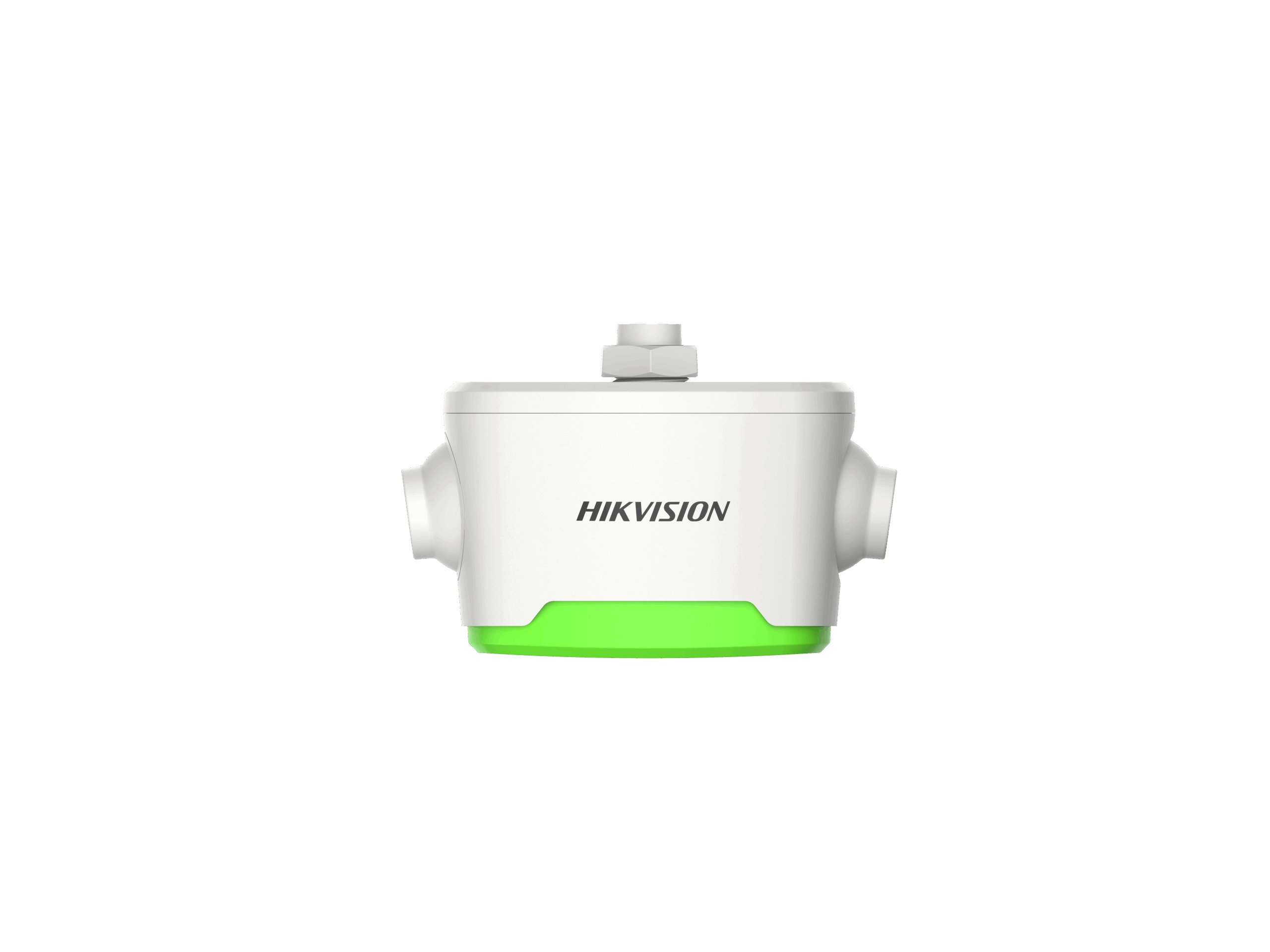

DS-TCP440-DB – 4 MP Dual-Sensor iBeacon Guidance Camera

Built-in high-performance chip, supporting ANPR (accuracy ≥ 99.5%), detection of the parking space status (accuracy ≥ 99.99%), and smart analysis of crossing over line, motion detection, etc.
HD 4.0 MP camera, applied in environment with low illumination such as underground garage.
3D noise reduction to guarantee clean and exquisite image.
Smart detection of the parking space status, and smart analysis of crossing over line, motion detection, etc.
Energy-saving LED with high brightness and low consumption.
Speed recognition in second accuracy to indicate the parking space status in real time and provide accurate available parking space number
Network wiring with easy connection, installation, and maintenance.
ROI encoding.
Two RJ45 interfaces, supporting connecting cameras in series, and no power cord is needed.
Built-in iBeacon module, supporting indoor positioning and navigation with the help of APP. iOS or Android SDK is provided.

Camera

Sensor Type1/3″ Progressive Scan CMOS
Max. Resolution2560 × 1440
Min. Illumination
Color: 0.019 Lux @ (F1.9, AGC OFF)

B/W: 0.011 Lux @ (F1.9, AGC OFF)
Day/Night SwitchSupported
Number of Detected Parking SpaceMax 6
Shutter1 to 1/100,000 s
Lens
2.8 mm

4 mm

Lens

Lens Type
2.8 mm

4 mm
Aperture
2.8 mm：F2.0

4 mm：F2.0
Focal Length & FoV
2.8 mm, horizontal FoV: 103.7±5°, vertical FoV: 56.1±5°, diagonal FoV: 121.8±5°,

4 mm, horizontal FoV: 81.3±5°, vertical FoV: 43.9 ±5°, diagonal FoV: 97±5°
FocusFixed


WDR140db
Defogsupported
Main Stream50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)
Image SettingsSaturation, brightness, contrast, white balance, and gain are adjustable by client,software or web browser.
Day/Night SwitchAuto/Scheduled/Manual
WDR SwitchOn, Time, Brightness
Frame Rate25fps

Video

ROI8 regions respectively for main stream and sub-stream, 6 levels for each region.
Video CompressionH.265/H264/MJPEG
H.264 Type
Low profile

Medium profile

High Profile
Video Bit Rate32 Kbps to 16 Mbps
Bit Rate TypeConstant, Variable
Scalable Video Coding (SVC)MJPEG , H.265 and H.264 encoding

Capture Parameters

Image FormatJPEG
Capture Resolution2560 x 1440 (default)2688 × 1520, 1920 × 1080, 1280 × 720
Smart Recognitionvehicle entering/exiting parking space status, parking spacestatus detection,Intelligent Detection
Capture Picture OverlayLane No., Capture Time, Anti-counterfeiting Code, Capture No., Vehicle Entry/Exit Direction, etc

Network

Network StorageNAS (NFS, SMB/CIFS), auto network replenishment (ANR) together with high-end Hikvision memory card, memory card encryption and health detection are supported
ProtocolTCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNSDDNS,RT,RTSP,RTCP,NTP,SNMP，OTAP
APIONVIF(PROFILE S,PROFILE G), ISAPI, SDK
ClientHikCentral,SDKdemo,DS-TPM400
Web BrowserPlug-in required live view: IE10+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local service: Chrome 41.0+, Firefox 30.0+
SecurityOne-key restoration, password protection, watermark

Compression Standard

Network Function

Smart Functions Built-in AI deep-learning algorithm, supporting ANPR and parking space detection.
ProtocolTCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, UPnP, SNMP, FTP, 802.1x, QoS, HTTPS (SIP, SRTP, and IPv6 optional)

Interface

Smart Function

General

Resolution4 MP
Power SupplyHikvision PoE, or 12 to 24 VDC wide-range voltage
Working Temperature and Humidity
-20 °C to 70 °C (-4 °F to 158 °F)

5% to 95% @ 40°C (non-condensing)
Working Environment90% or less (non-condensing)
Storage Temperature and Humidity
Temperature: -20 °C to 70 °C (- 4°F to 158 °F)

Humidity: 95% (non-condensing)
Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
ConsumptionMax. 6.5 W
Weight0.525 kg (1.1 lb.)
Dimensions170 × 121 × 105 mm (6.7 × 4.8 × 4.2 inch)
Weight (with Package)1 kg (2.2 lb.)
Dimensions (with Package)275 * 205 * 175 mm(10.8 * 8.1 * 6.9 inch)
