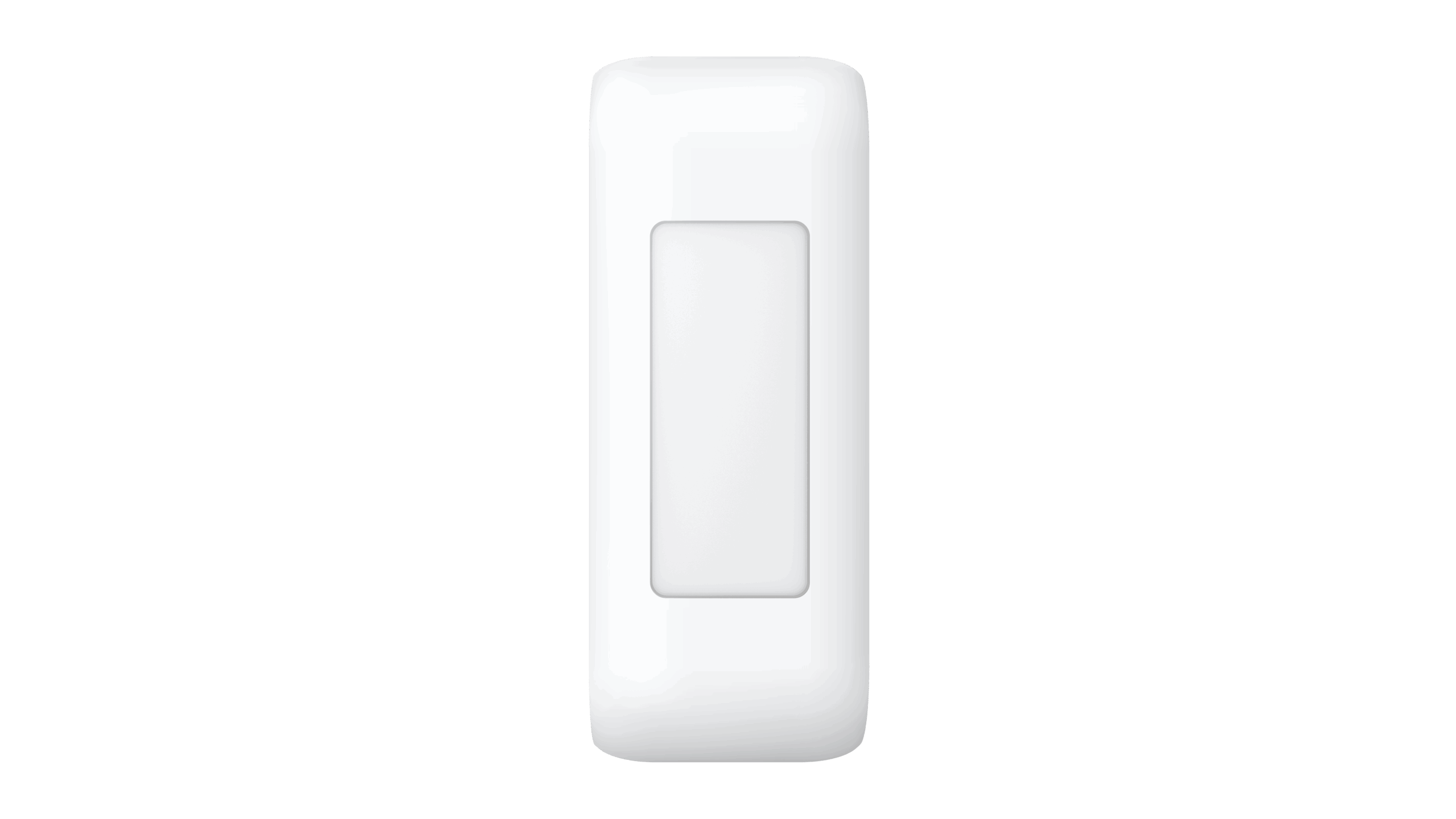

DS-PDC5NC-EG2 – Wired PIR Curtain Detector

Detection Performance

• Detection MethodPassive Infrared
• Detection Range5m
• Detection Angle5°
• Detection Zones28
• Detectable Speed0.3～2m/s
• SensitivityAuto
• White Light Filter6500lux
• Digital Temperature CompensationSupport
• Creep Zone ProtectionSupport

Feature

• Digital ProcessingSupport
• Tamper ProtectionFront
• Directional DetectionSupport

Interface

• Alarm OutputNormally Closed
• LED IndicatorBlue(Alarm)

Transmission

• Transmission MethodWired

Electrical Characteristics

• Power Supply9 to 16 VDC
• Typical Voltage12 VDC
• Power Consumption

  Maximum current：15mA @12VDC

  Quiescent current：15mA @12VDC

General

• Operation Temperature-10 °C to 55 °C (14 °F to 131 °F)
• Storage Temperature-20 °C to 60 °C (-4 °F to 140 °F)
• Operation Humidity10% to 90%
• Dimension(WxHxD)29.7mm × 78.1mm × 24.8mm
• Weight31.5g
• Mounting Height2.4 to 4m
• Mounting MethodCeiling
• Application ScenarioIndoor
