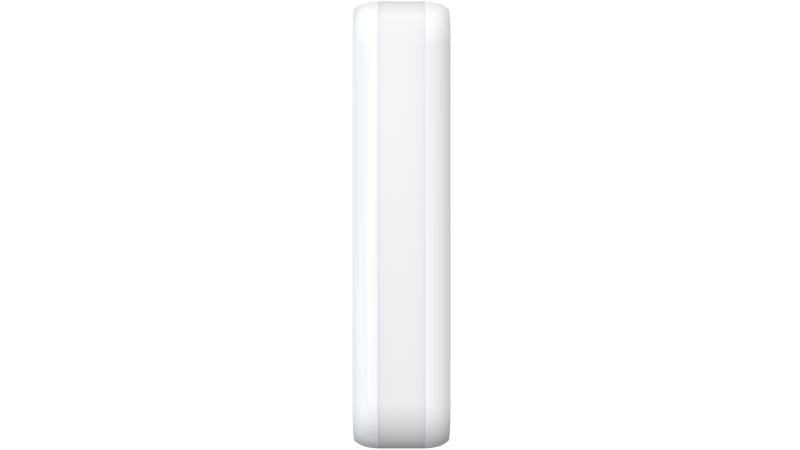

DS-PDC10DM-VG3 – Wired Dual-Tech AM Curtain Detector
- · Slim design for window frame installation
- · IP65 weather resistance for outdoor application
- · Active IR anti-masking
- · Automatic sensitivity
- · Selectable EOL resistors for alarm and tamper-proof wiring
- · Directional detection support
Detection Performance
- Detection MethodPassive Infrared;Microwave
- Detection Range
Wall Mount：10m
Ceiling Mount：6m
- Detection Angle5°
- Detection Zones32
- Detectable Speed0.2～3m/s
- SensitivityAuto
- White Light Filter6500lux
- Microwave Frequency24GHz(24.15～24.25GHz)
- Digital Temperature CompensationSupport
- Creep Zone ProtectionSupport
- Anti-maskingSupport
Feature
- Digital ProcessingSupport
- Sealed OpticsSupport
- Tamper ProtectionFront;Rear
- Directional DetectionSupport
Interface
- Alarm OutputNormally Closed
- LED IndicatorGreen(PIR), Red(Microwave), Green+Orange(Mask), Blue(Alarm)
Transmission
- Transmission MethodWired
Electrical Characteristics
- Power Supply9 to 16 VDC
- Typical Voltage12 VDC
- Power Consumption
Maximum current：25mA@12VDC
Quiescent current：16mA@12VDC
General
- Operation Temperature-25 °C to 60 °C (-13 °F to 140 °F)
- Storage Temperature-25 °C to 60 °C (-13 °F to 140 °F)
- Operation Humidity10% to 90%
- IP RateIP65
- Dimension(WxHxD)29.2mm × 134.4mm × 39.5mm
- Weight79g
- Mounting Height2 to 4m
- Mounting MethodWall;Ceiling
- Application ScenarioIndoor,Outdoor
- BracketL-shaped adapter included
