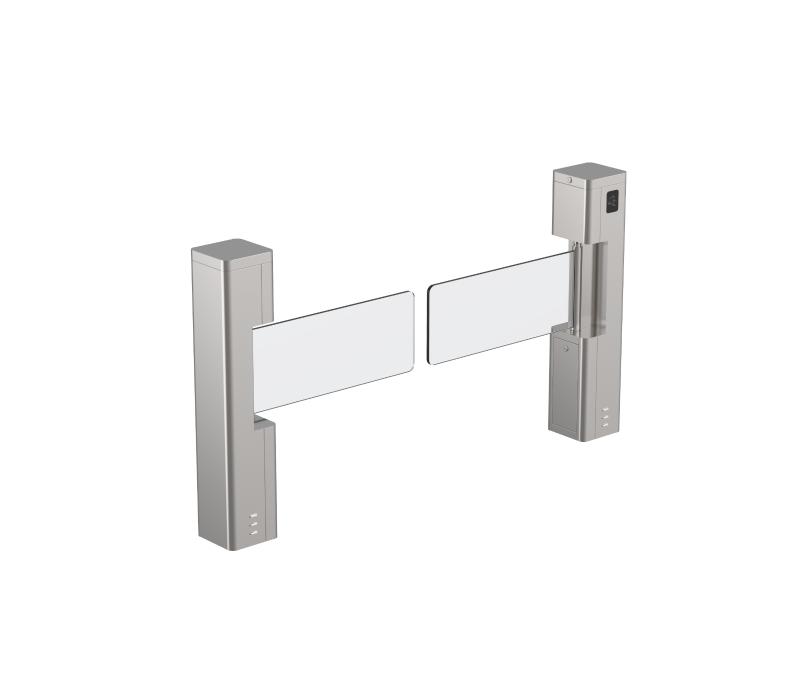

DS-K3BC411X – Value Swing Gate

System

• MCBF＞3 million times
• MotorBrush motor

General

• Throughput

  20 to 60 persons per minute

  The actual throughput is affected by the person passing rate and passing method.

• Power supply method100 to 240 VAC; 50 to 60 Hz
• Working temperature-10 °C to 45 °C (14 °F to 113 °F)
• Lane width

  600 mm ( for Stainless steel pipe )

  600 mm to 1100 mm ( for Acrylic glass )

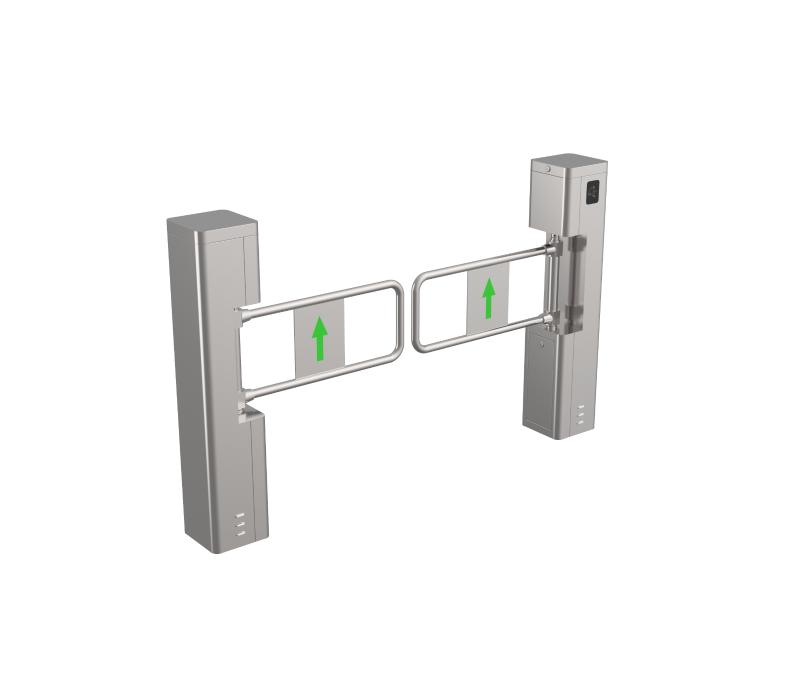

• Barrier materialStainless steel pipe; Acrylic glass
• Working humidity10% to 95% (No Condensing)
• Pedestal materialSUS304 stainless steel
• Dimensions

  Without packaging: 1200 mm × 200 mm × 1020 mm (47.2″ × 7.9\” × 40.2\”)

  With packaging: 1408 mm × 348 mm × 1156 mm (55.4 × 13.7\” × 45.5\”)

• Application environmentIndoor
• Weight

  35 kg/38 kg (Left/Right)

  77.2 lb/83.8 lb (Left/Right)

Configuration

• Module selectionNO
• Authentication modeCard;Face
• Card typeEM;M1
• Wall distance130 mm
• Lane width600;650;750;900;1100
• Recommended width600
• Pedestal width200mm
• Pedestal length200mm
• Barrier materialAcrylic glass;Stainless steel pipe
• BaseNO
