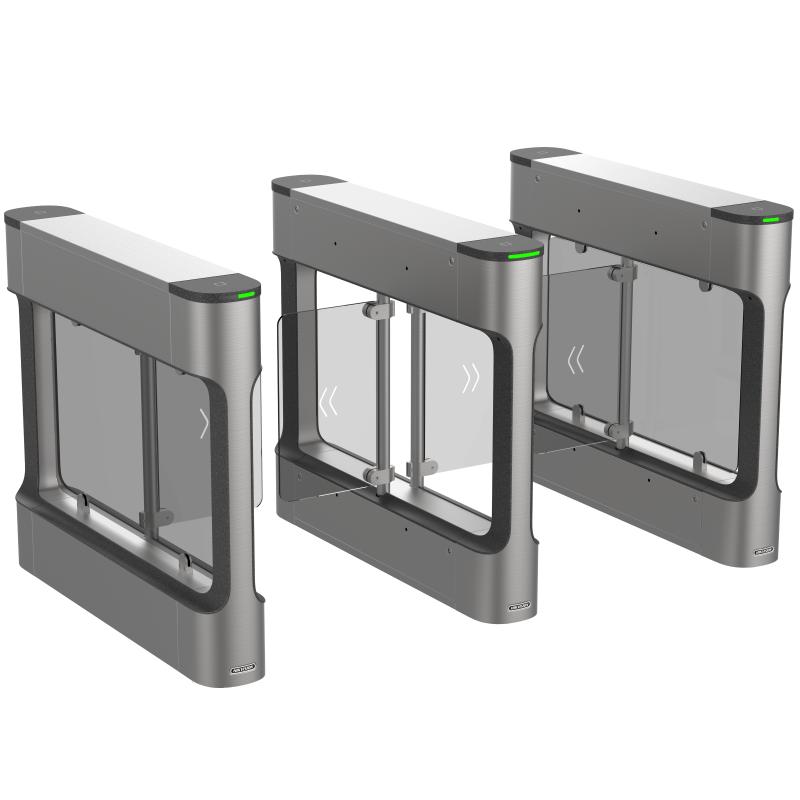

DS-K3B411BX – Value Swing Barriers

6 pairs of IR light detectors: Permissions validation and anti-tailgating
LED light indicates passing direction
The barrier will stop working for a period of time when detecting obstruction when open/close barrier
Self-detection, Self-diagnostics, and automatic alarm
System will cancel the passing permission if a person does not pass through the lane within the valid passing duration
Door remaining open when fire alarm triggered: The barrier will open automatically when alarm is triggered.
Barrier will automatically open when powering down

System

Interface

Capacity

General

Throughput
20 to 60 persons per minute

The actual throughput is affected by the person passing rate and passing method.
Power supply method100 to 240 VAC; 50 to 60 Hz
IR light detectors6 pairs
Lane width550 mm to 1100 mm
Working temperature-20 °C to 65 °C (-4 °F to 149 °F)
Barrier materialStainless steel pipe; Acrylic
Built-in access controllerSupport
Working humidity10% to 95% (No Condensing)
Dimensions
Without packaging: 1200 mm × 200 mm × 1020 mm (47.2″ × 7.9\” × 40.2\”)

With packaging: 1408 mm × 348 mm × 1156 mm (55.4 × 13.7\” × 45.5\”)
Pedestal materialSUS304 stainless steel
Application environmentIndoor and outdoor
Protective levelIPX4 (proved by Hikvision laboratory)
Weight
Net (Approximately): 38.3 kg (Left), 43.3 kg (Middle), 40.2 kg (Right)/84.5 lb (Left), 95.5 lb (Middle), 88.6 lb (Right)

Rough (Approximately): 66.5 kg (Left), 71.5 kg (Middle), 68.4 kg (Right)/146.6 lb (Left), 157.7 lb (Middle), 150.8 lb (Right)
ApprovalCE/CB/RoHS/REACH/WEEE
Power consumption65W (stand by)

Configuration
