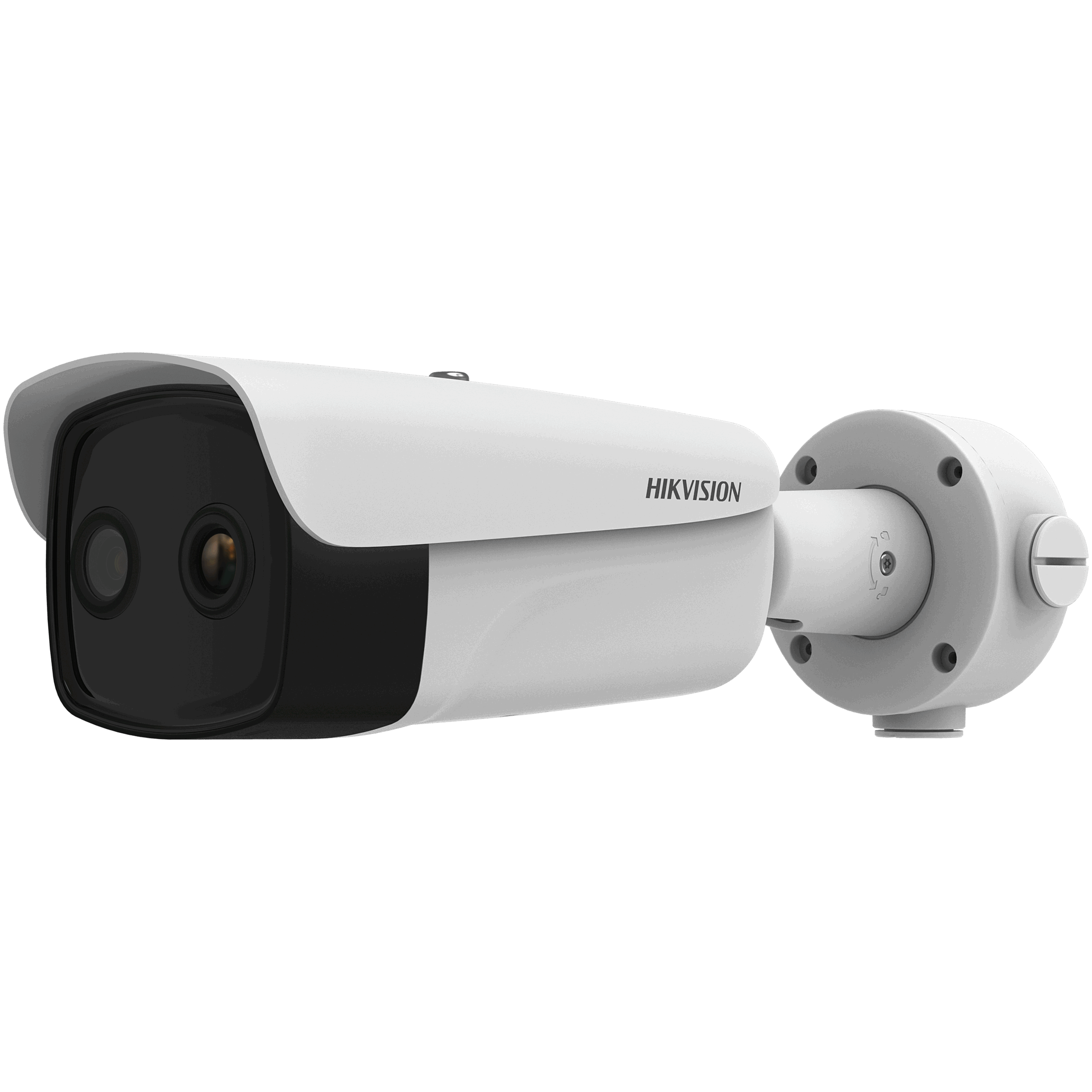

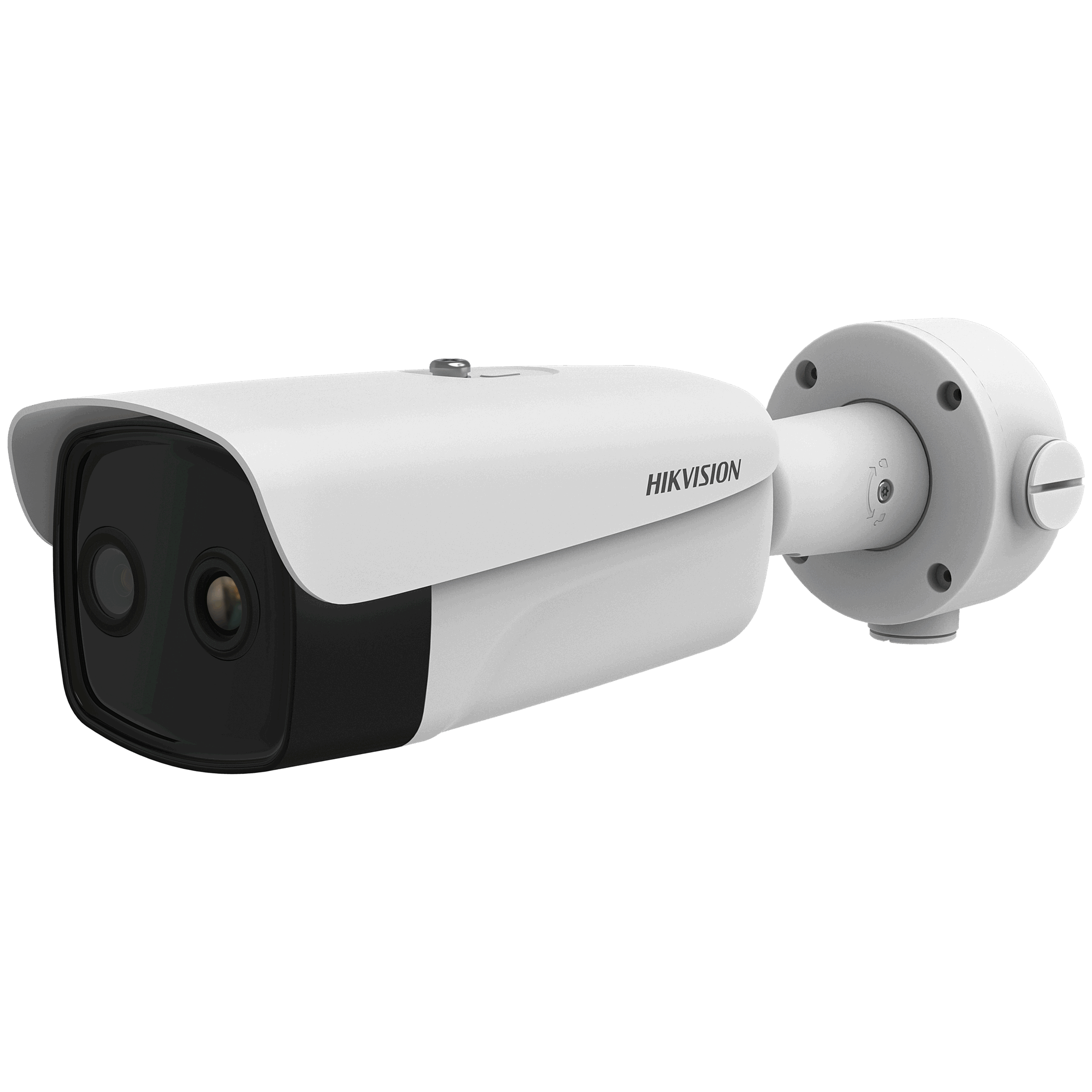

DS-2TD2637T-10/QY – Thermographic Thermal & Optical Bi-spectrum Network Bullet Camera

Thermal Module

• Image SensorVanadium Oxide Uncooled Focal Plane Arrays
• Resolution384 x 288
• Pixel Pitch17 μm
• Spectral Range8 μm to 14 μm
• NETD≤ 35 mK (@25° C,F# = 1.0)
• Focal Length9.7 mm
• IFOV1.75 mrad
• ApertureF1.0
• Field of View37.5° × 28.5° (H × V)
• Min. Focusing Distance1 m
• Digital Zoom×2, ×4

Optical Module

• Image Sensor1/2.7″ Progressive Scan CMOS
• Resolution2688 × 1520
• Min. Illumination0.0089Lux @(F1.6,AGC ON) ,0 Lux with IR
• Field of View84° × 44.8° (H × V)
• Focal Length4 mm
• Shutter Speed1 s to 1/100,000 s
• White BalanceMWB/AWB1/Locked WB/Fluorescent Lamp/Incandescent Lamp/Warm Light Lamp/Natural Light
• Day & Night ModeIR Cut Filter with Auto Switch
• WDR120 dB

Image Effect

• Bi-spectrum Image FusionDisplay the details of optical channel on thermal channel
• Target ColorationYes. Supported in white hot and black hot mode.

Illuminator

• IR DistanceUp to 40 m
• IR Intensity and AngleAutomatically adjusted

Smart Function

• VCA4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total.
• Temperature Measurement3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line)
• Temperature Range- 20 °C to 550 °C (- 4 °F to 1022 °F)
• Temperature AccuracyMax (± 2 °C, ±2 %)
• Fire DetectionDynamic fire detection, up to 10 fire points detectable
• Smoking DetectionUp to 10 smoking points detected
• Smoke DetectionSupport smoke detection on optical channel

Video and Audio

• Main Stream

Optical channel

50 HZ: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

60 HZ: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

Thermal channel

25 fps (1280×720P， 704×576， 352×288， 384×288)

• Sub-stream

Optical channel

50 HZ: 25 fps (704 × 576, 352 × 288)

60 HZ: 30 fps (704 × 480, 352 × 240)

Thermal channel

25 fps (704 × 576, 352 × 288, 384 × 288)

• Video Compression

Main Stream: H.265/H.264

Sub-Stream: H.265/H.264/MJPEG

• Audio CompressionG.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM

Video and Image

• Color Palettes17 types (White hot, Black hot, Fusion 1, Rainbow, Fusion 2, Ironbow 1, Ironbow 2, Sepia, Color 1, Color 2, Ice fire, Rain, Red hot, Green hot, Dark blue, Winter, Summer)

Network

• ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE,TP,Bonjour,SFTP,SRTP,SSL
• Network StorageMicroSD/SDHC/SDXC card (up to 512 G) local storage, NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
• APIISAPI, ISUP, HIKVISION SDK, and third-party management platform, Open Network Video Interface,ONVIF (Profile S, Profile G, Profile T), OTAP
• Simultaneous Live ViewUp to 20 channels
• User/Host levelUp to 32 users, 3 levels: Administrator, Operator, User
• SecurityUser authentication (ID and password), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering
• ClientiVMS-4200, Hik-Connect

Interface

• Alarm Input2, alarm input (0-5 VDC)
• Alarm Output2, alarm output (alarm response actions configurable)
• Alarm ActionSD recording/Relay output/Smart capture/FTP upload/Email linkage
• Audio Input

1, 3.5 mm Mic in/Line in interface

Line input: 2 – 2.4 V [p-p], output impedance: 1 KΩ ± 10%

• Audio OutputLinear level, impedance: 600 Ω
• Communication Interface

1, RJ45 10 M/100 M Self-adaptive Ethernet interface.

1, RS-485 interface (half duplex)

• Analog Output1.0V [p-p]/75Ω, PAL/NTSC/BNC

General

• Menu Language32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
• Power Supply

24 VAC ± 25%, 12 VDC ± 25%,24VDC two-core terminal block

PoE (802.3af, class 3)

• Power Consumption

24 VAC ± 25%: 0.8 A to 0.5 A, max. 9.5 W

12 VDC ± 25%: 0.63 A to 1.06 A, max. 9 W

24VDC: 0.4A, max 9.5W

PoE (802.3af, class 3): 36 V to 57 V, 0.28 A to 0.17 A, max. 10 W

• Working Temperature/Humidity

Temperature: -40°C to 65°C (-40°F to 149°F)

Humidity: 95% or less

• Protection Level

IP67 Standard

IK10-rated housing

TVS 4000V lightning protection, surge protection, voltage transient protection

NEMA 4X anti-corrosion housing

• Dimensions376.1 mm × 119.1 mm × 118.1 mm (14.81″ × 4.68″ × 4.65″)
• Weight1.82 kg (4.01 lb)

Detection Range Table/Smart Function Range

• VCA Range for Humans70 m
• VCA Range for Vehicles210 m

Approval

• EMC

CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN50130-4: 2011+A1: 2014);

RCM (AS/NZS CISPR 32: 2015);

IC (ICES-003: Issue 7)

KC (KSC9832: 2019; KSC9835: 2019)

FCC (ANSI C63.4;FCC Part15 sub B)

• Safety

CB: IEC 62368-1: 2014+A11;

CE-LVD: EN 62368-1: 2014/A11: 2017;

UL: (CSA C22.2 No. 62368-1-14, 2nd Ed.)

• Environment

CE-RoHS：2011/65/EU,

WEEE: 2012/19/EU,

Reach：Regulation(EC) No 1907/2006

• Protection

IP67: IEC 60529-2013

IK10: IEC 62262-2002

• Anti-Corrosion ProtectionNEMA 4X (NEMA 250-2018)
